PP PE PVC Single Wall Corrugated Pipe Production Line

Corrugated tube forming machine has closed structure, and we can also provide vacuum forming .Forming mould move back and forth in a closed and integrally tunnel. Forming tunnel is sandwich design and cooling the mould forcedly by cooling the water .Molding strip is made of carbide steel, so it is corrosion resistant. This line is Single-wall corrugated pipe machine. It adopts gears to run modules and templates so as to realize water circulating cooling and air cooling of the products, which ensures high-speed molding, even corrugation, smooth inner and outer pipe wall. These corrugated pipes are especially used in wires conduit pipe.

Machine Description

1.The old chain transmission single-wall corrugated pipe production line: the chain transmission, the equipment is cheap, but speed is slow, repair complex, average single-wall corrugated pipe machine speed in 7-8 m/min.

2. The new type of gear drive single wall corrugated pipe machine: adopts gear drive, the price is more expensive, but running speed, simple installation repair, produces single-wall corrugated pipe of good appearance, no break, guarantees the product quality, the company specially designed single-wall corrugated pipe extrusion fastest speed can reach 25 to 30 m/min, is three times as many old machine.

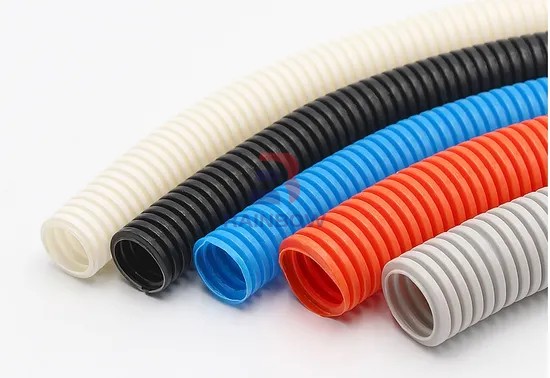

High speed PP PE PVC PA corrugated conduit pipe machine designed by our company can produce PP / PE / EVA / PVC etc single wall corrugated pipes, which takes the advantages of high temperature resistance, abrasion resistance, corrosion resistance, high strength. This hose can be widely used in wire and cable products threading pipes, washing machine drains, vacuum cleaner, ventilation pipes, tubes, etc.

High speed plastic corrugated pipe making machine Features:

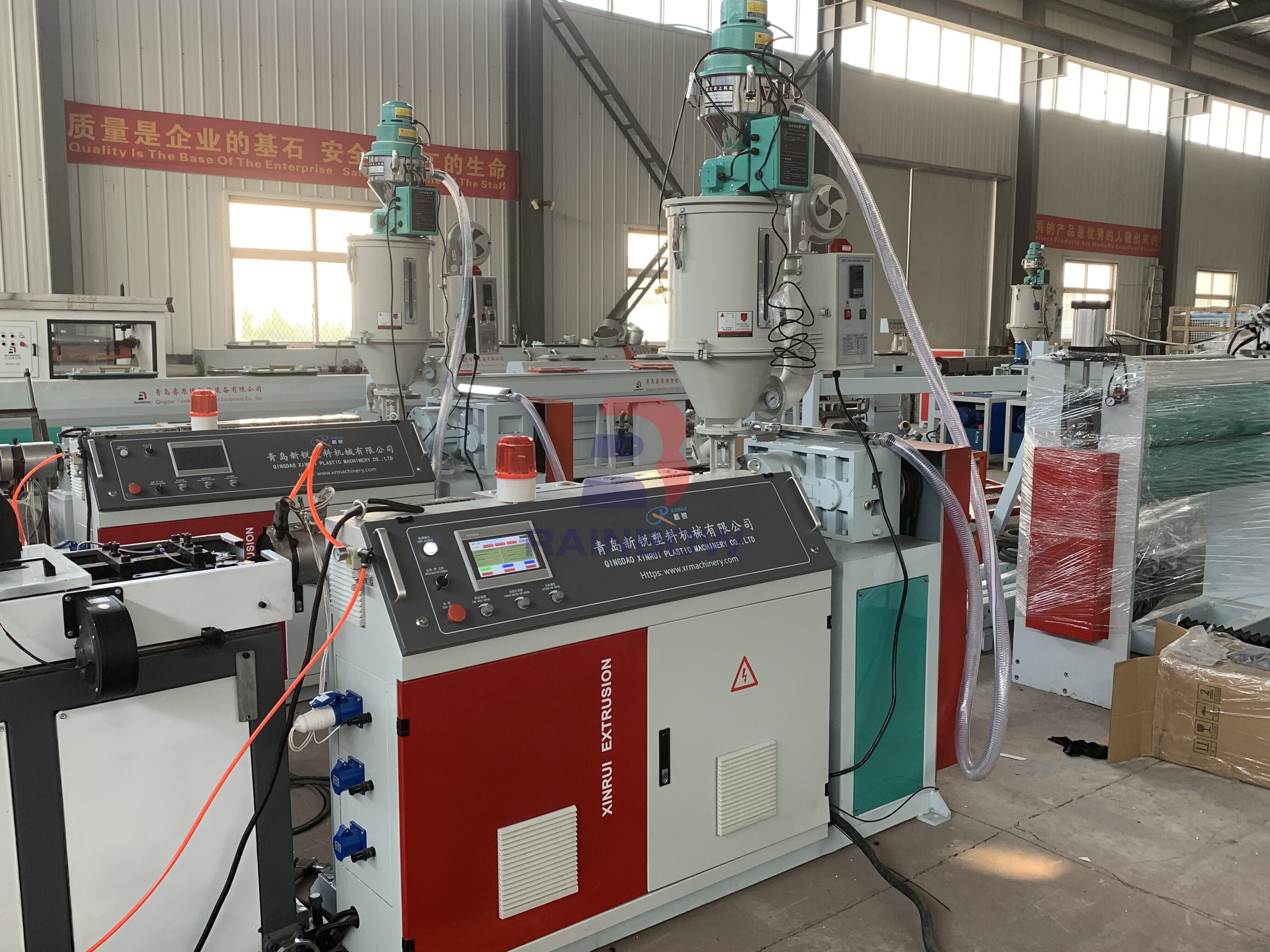

①Extruder: high efficient screw, hard gear surface gearbox reducer, uniformed raw material heating, good plasticization, high extrusion speed.

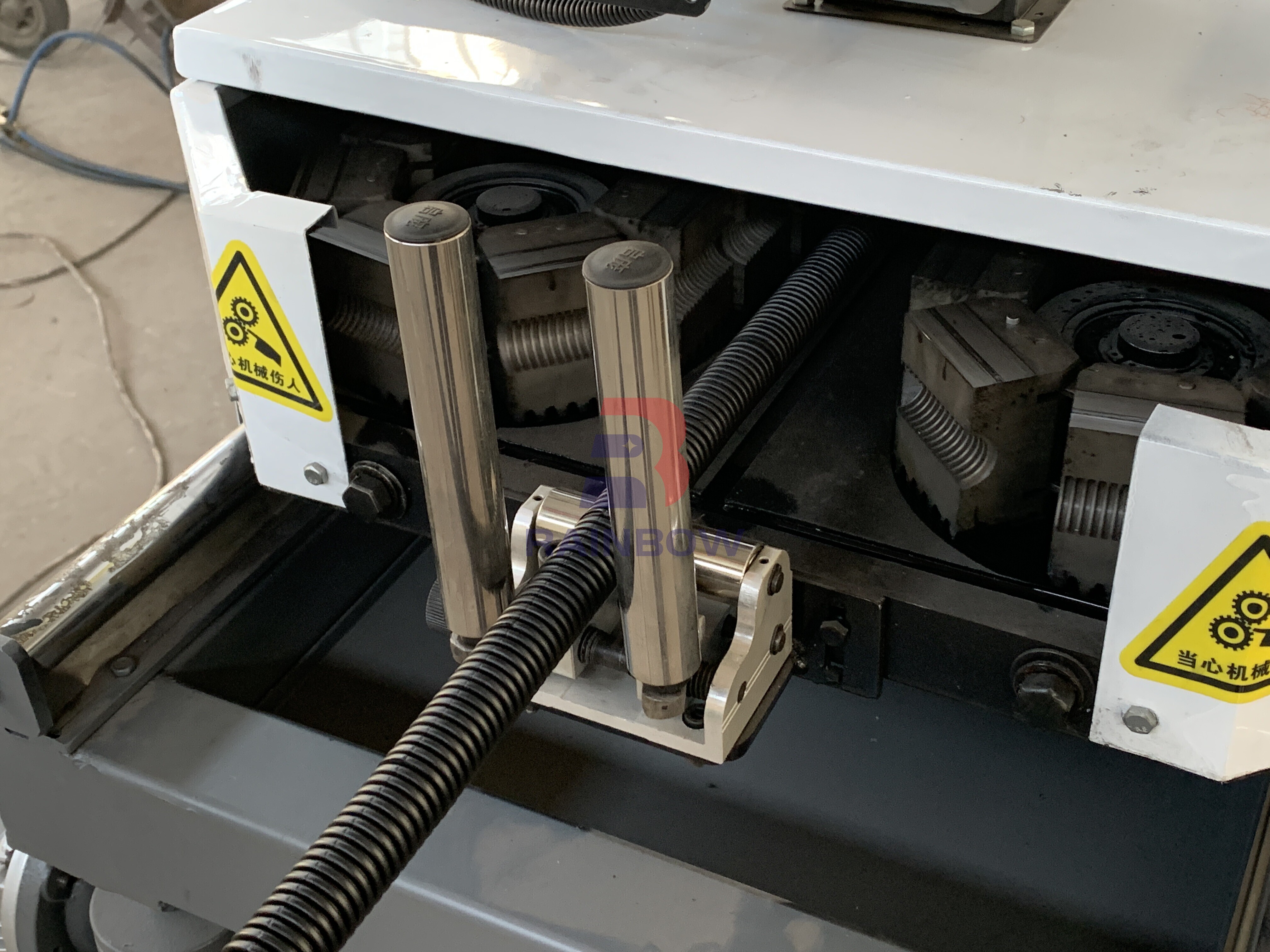

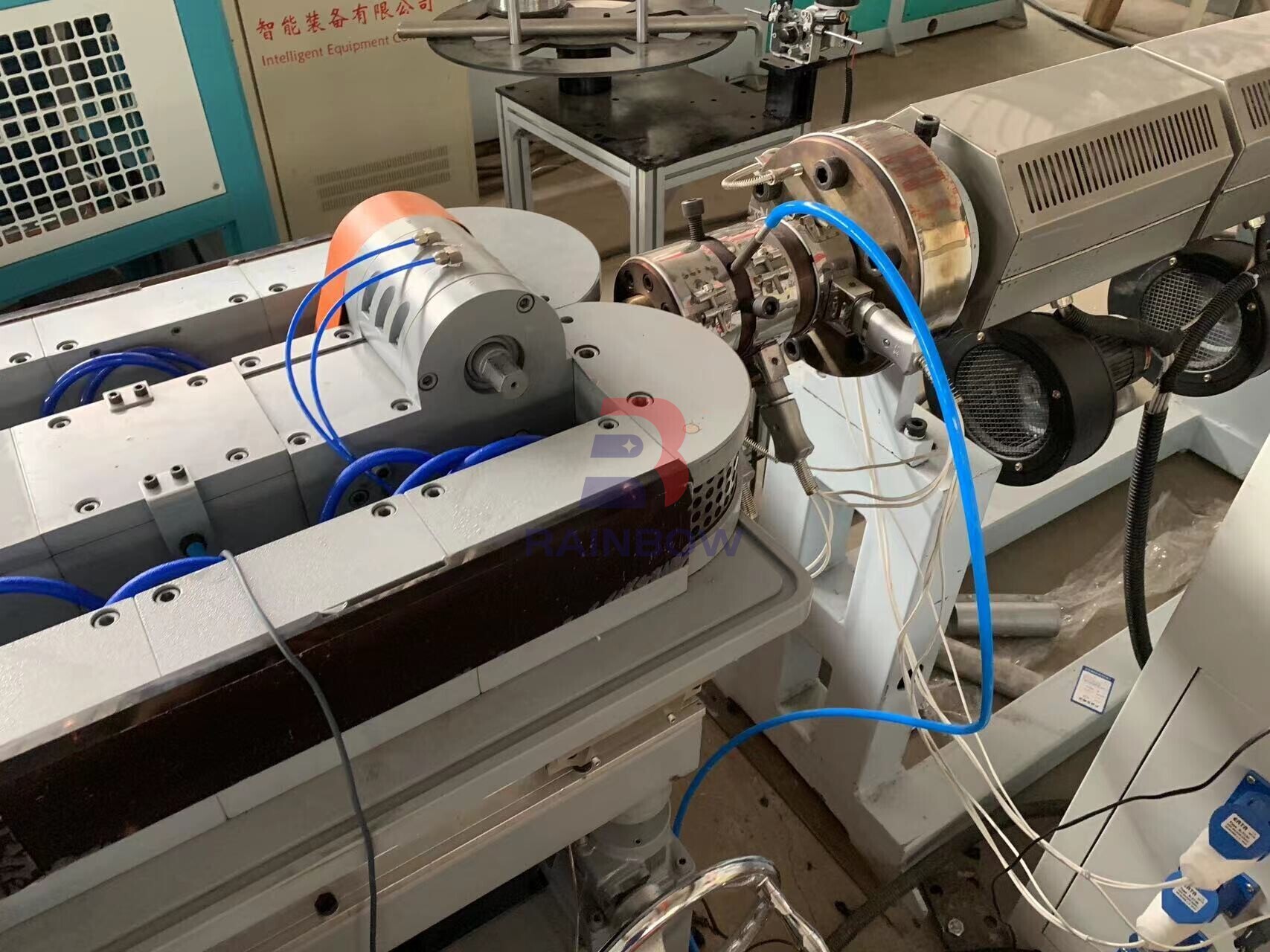

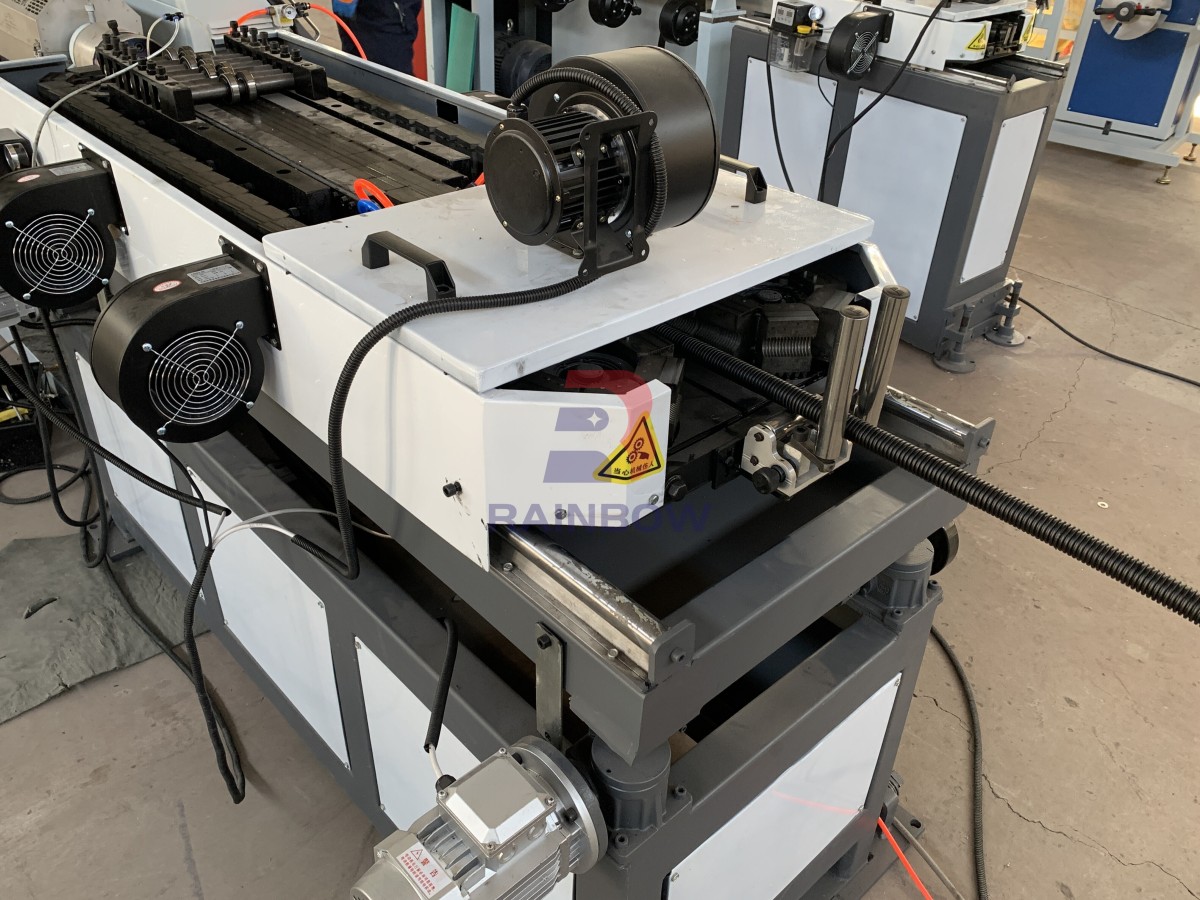

②forming machine: closed structure, mould link in the overall closure base does round-trip running in the running tunnels.

③Forming moulds: they are made of hard steel, dealed with a rigorous use of CNC finishing materials produced to ensure the hardness and precision of the forming moulds. These moulds are easy and convenient to change.

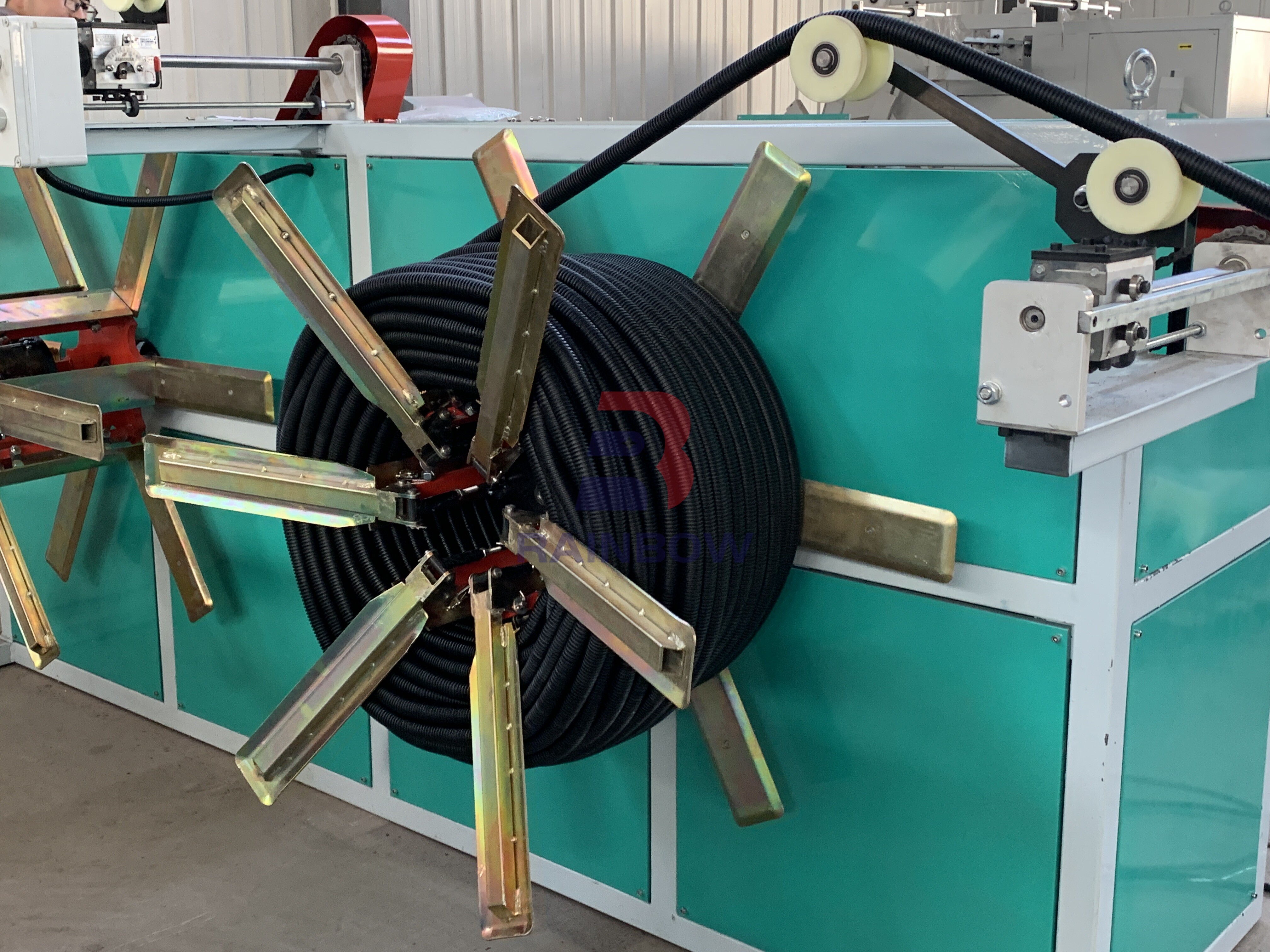

④winder :Single position or double position with torque motor.

⑤Electrical parts: Siemens motor ,ABB inverter, Schneider contactor, Omron thermocontrollers etc.
