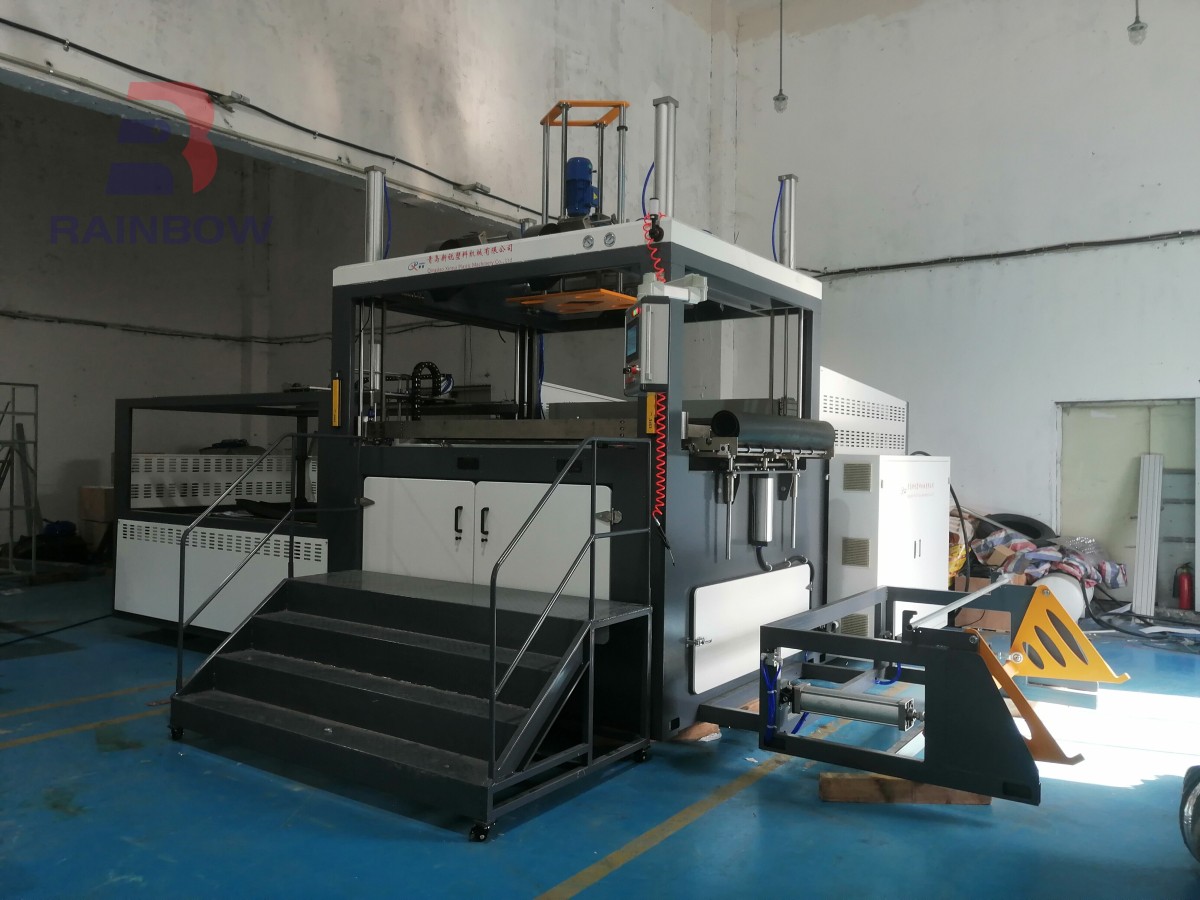

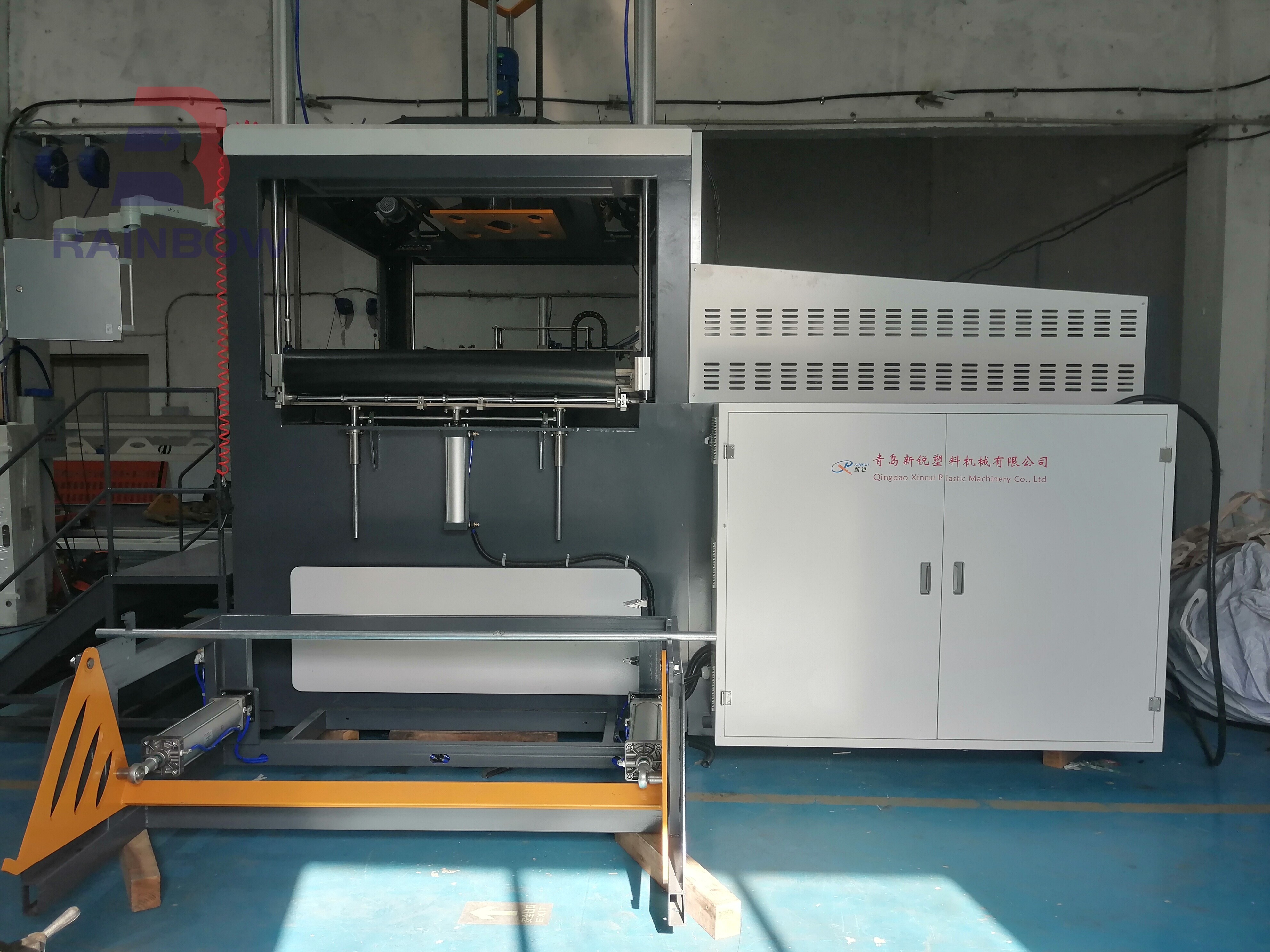

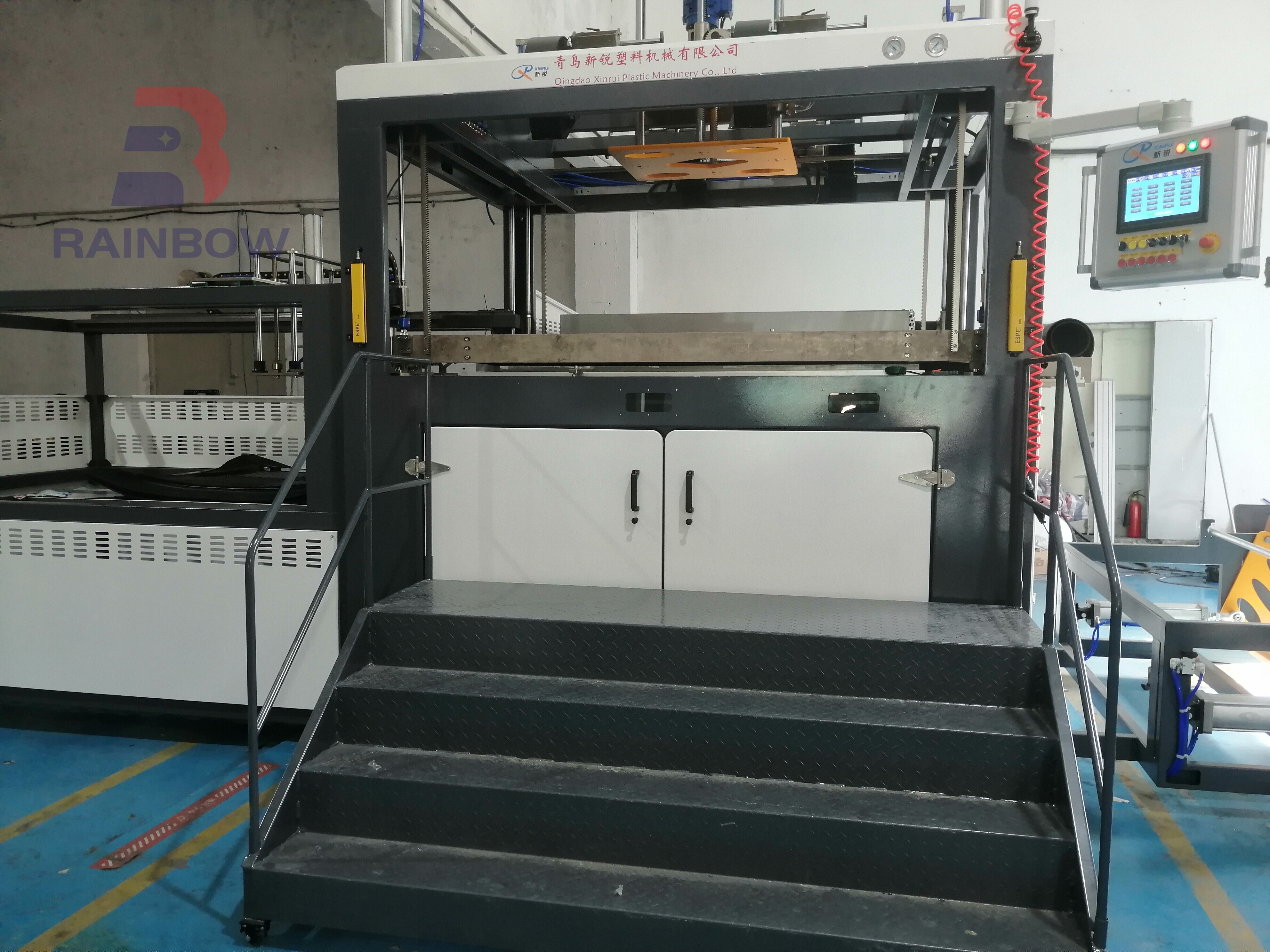

TPE Car Mat Vacuum Forming Machine

Basic units:

1. PLC control system with touch screen

2. Independently controllable heating zones, heated by far infrared ceramic heating bricks

3. Pneumatically powered clamp frame

4. Automatic cooling system with industrial chiller and spray guns

5. Automatic vacuum forming system

6. Steel components coated with polyurethane

Main Features:

1. Feeding System: Auto feeding with inverter/servo motor, precise, stable, and vibration-free.

2. Auto Temperature Control: Fast, stable heating with low energy consumption.

3. Two-Stage Vacuum: Improved forming with vacuum-delay.

4. Electric Liftgate Adjustment: Easy positioning.

5. Processing Flow: Auto Feeding → Heating → Forming → Cooling → Release → Cutting.

6. System Components: Includes Heating, Forming, Vacuum, Pneumatic, Cooling, and Control systems.

7. Heating Control: Enclosed furnace, uniform heating with SCR regulators (optional PLC control).

8. Cooling System: Air-cooled chiller and water cooling for faster forming.

9. Air Pressure Release: Prevents damage during mold release.

10. Two-Stage Vacuum: Ensures quality forming of thick sheets.

11. Optional Plug Assist: Enhances even distribution for deep draws.

12. Real-Time Adjustments: Adjust parameters without interrupting the cycle.

13. PLC Memory: Saves project settings for easy recall.

14. Imported Components: High-quality parts ensure reliability and durability.
